Introducing the GoEco Excel 5kW Wide Low Lintel Multi-Fuel Stove by Charlton & Jenrick
The GoEco Excel 5kW Wide Low Lintel Stove by Charlton & Jenrick is purpose-built for low fireplace openings — ideal for cottages, period homes, and renovation projects with tight vertical clearance. But don’t let its compact height fool you.
This stove still delivers generous heat, widescreen flame visuals, and outstanding burn efficiency. The broad firebox takes logs up to 350mm, while the curved widescreen glass stays crystal clear thanks to an advanced air wash system.
With easy-to-use air controls, multi-fuel compatibility, and ultra-low emissions, it ticks every box for performance, compliance, and everyday ease. Whether wood or smokeless fuel, the Excel Wide Low handles it with style.
Why Choose the GoEco Excel 5kW Low Lintel Stove by Charlton & Jenrick?
The GoEco Excel 5kW Low Lintel Stove by Charlton & Jenrick is designed for where space is tight but performance still matters. Its low-set profile fits beautifully into traditional hearths and shallow openings, making it the go-to option for period homes or snug renovations.
Despite its compact stature, this stove delivers serious heat with up to 7.2kW of output and over 80% efficiency. The curved glass front offers a wide, immersive flame view, while smooth air controls and a strong air wash system make operation clean and simple.
With clearSkies Level 5 certification, Ecodesign 2022 compliance, and full DEFRA exemption, it's a smart choice for those who want low emissions without compromising on looks or warmth.
FAQs – GoEco Excel 5kW Low Lintel Stove by Charlton & Jenrick
Will this stove fit under a low lintel?
Yes — this model is specifically designed with a reduced height profile, making it ideal for traditional fireplace openings and shallow chambers.
What types of fuel can I burn?
It’s a true multifuel stove. You can burn seasoned wood logs or approved smokeless fuels like Maxibrite. Avoid coal, treated wood, or household waste.
Can I use it in a smoke control area?
Definitely. It’s DEFRA-exempt and Ecodesign compliant, so it’s approved for use in smoke control zones across the UK.
How efficient is it?
Very. It’s over 84% efficient when burning wood and performs brilliantly with smokeless fuel too — keeping fuel use down and heat levels high.
Installation – GoEco Excel 5kW Low Lintel Stove by Charlton & Jenrick
- Must be installed by a qualified professional – HETAS-registered or under Building Control approval
- Flue size: 125mm minimum (150mm recommended for optimal draught)
- Fuel types: Suitable for seasoned logs and approved smokeless fuels
- Smoke zone use: DEFRA-exempt with supplied air limiter fitted
- Ideal for: Low lintel openings, inglenooks, and shallow fireplace chambers
- Chimney height: Minimum 4.5 metres recommended
- Hearth: Requires a 12mm thick non-combustible hearth; no constructional hearth needed
- Clearances: 700mm to sides, 400mm to rear (single-wall flue); reduced with twin-wall setup
- CO alarm: Legally required in the same room
- Before first use: Run 2–3 small fires to cure the paint and internal sealants
Why Choose the GoEco Excel 5kW Low Lintel Stove by Charlton & Jenrick?
Because not all fireplaces are made for tall stoves — and the GoEco Excel 5kW Low Lintel Stove by Charlton & Jenrick is the perfect solution for those tighter spaces. Its compact height fits beautifully under low lintels, while still giving you a generous widescreen view of the flames through elegantly curved glass.
Behind its low profile lies serious performance: up to 7.2kW of heat, 84.8% efficiency, and full multifuel versatility. It’s clean, powerful, and surprisingly roomy — handling long logs and smokeless fuels with ease.
With clearSkies Level 5 certification, Ecodesign 2022 compliance, and DEFRA exemption, it’s built for the homes (and regulations) of today. Whether you’re restoring a period hearth or just short on space, this stove brings charm, warmth, and peace of mind in one low-set package.

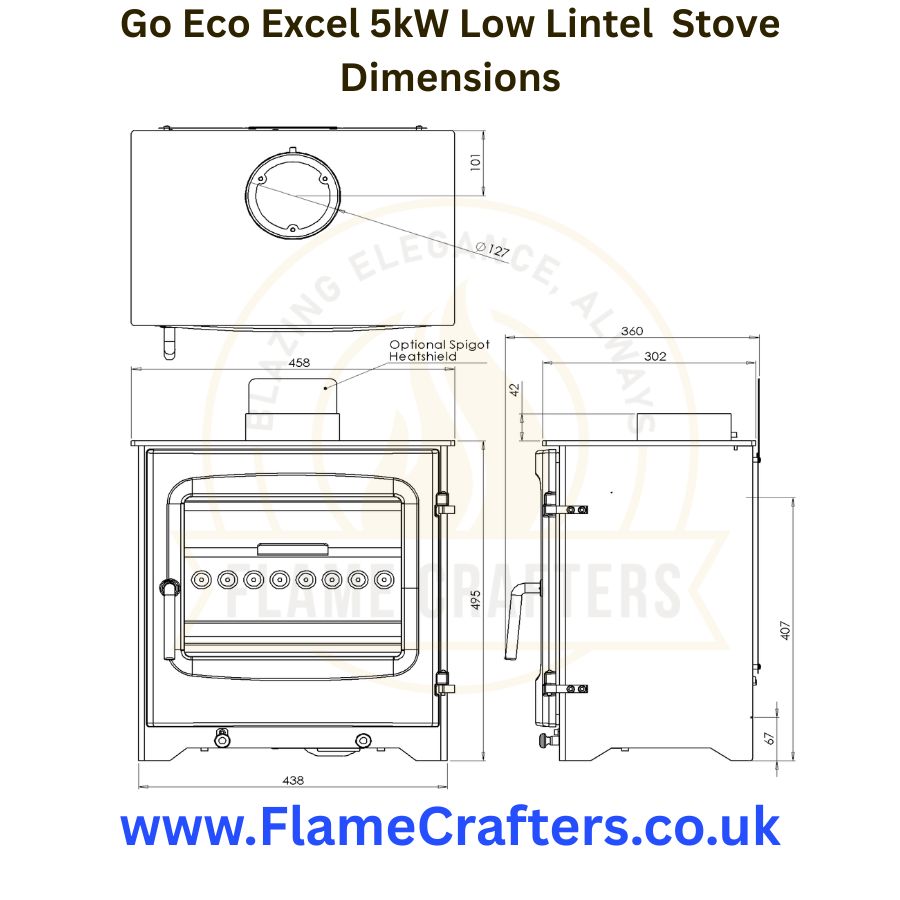

Technical Specifications – GoEco Excel 5kW Low Lintel Stove by Charlton & Jenrick
| Weight (packed/unpacked) | 80kg / 70kg (176 lbs / 154 lbs) |
| Width | 438mm (17.2 inches) |
| Depth | 302mm (1.89 inches) |
| Height (including legs) | 495mm(19.49 inches) |
| Heat Output | 5.0 kW (nominal) |
| Burner Type | Multifuel – designed for seasoned wood logs and approved smokeless fuels |
| Stove Construction | Durable steel body, cast iron grate, firebrick-lined firebox |
| Location Use | reestanding – perfect for low lintel openings, inglenooks, and compact hearth spaces |
| Compliance | Ecodesign 2022 Ready | clearSkies Level 5 | DEFRA-exempt (suitable for smoke control zones) | Independently tested to EN13240 standards |
